Releasing The VANOS Central Valve

NOTE: TECHNICAL INFORMATION
Assemble the tools for releasing and tightening of the VANOS central valves according to their accessibility.

Have all the special tools and commercially available tools ready.

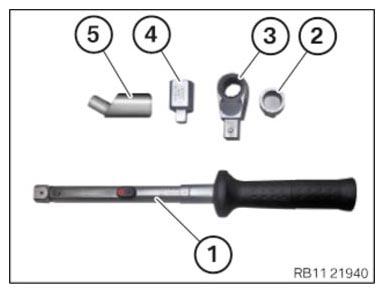

Number	Description
1	Standard torque wrench
2	Wrench socket set 2 450 487
3	Reversible ratchet 0 496 855
4	Commercially available reduction

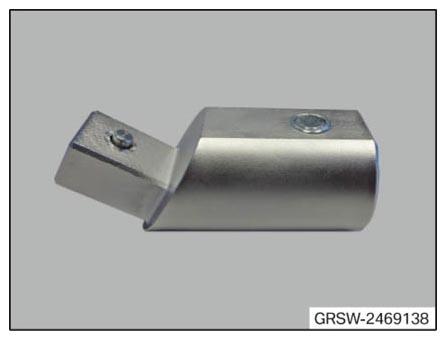

5	adapter 2 469 138

Courtesy of BMW OF NORTH AMERICA, INC.

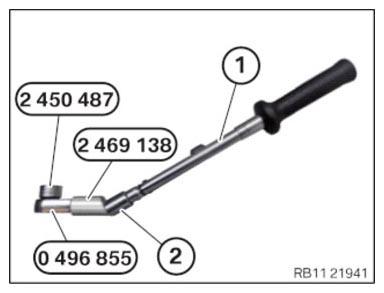

Assemble all the special tools and commercially available tools as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

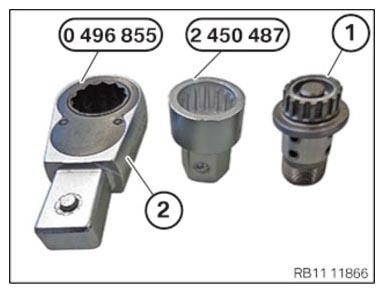

To release the VANOS central valve (1) use the reversible ratchet (2) from the special tool 0 496 855 with the special tool 2 450 487.

Courtesy of BMW OF NORTH AMERICA, INC.

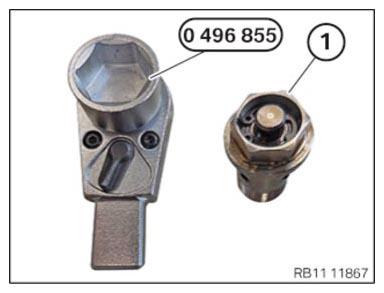

To release VANOS central valve (1), use the special tool 0 496 855.

Courtesy of BMW OF NORTH AMERICA, INC.

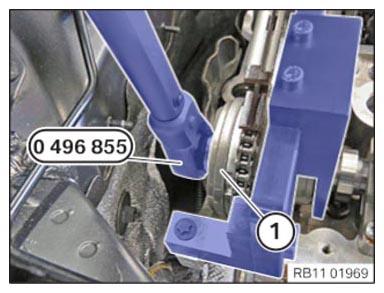

Release the VANOS central valve of the intake adjuster (1) with special tool 0 496 855 or 2 450 487.

Courtesy of BMW OF NORTH AMERICA, INC.

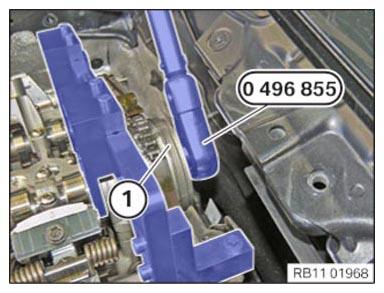

Release VANOS central valve of the exhaust camshaft adjuster (1) with the special tool 0 496 855 or 2 450 487.
