Remove The Cover In The Left Engine Compartment

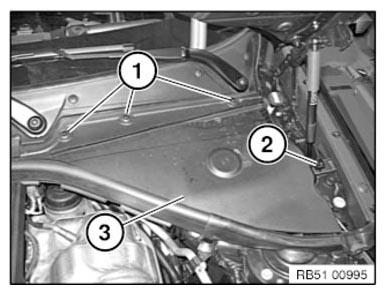

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Loosen the mounting elements (1).
• Unlock the latch mechanism (2).
• Remove the cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.
