41 00... Body Gap Dimensions

The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

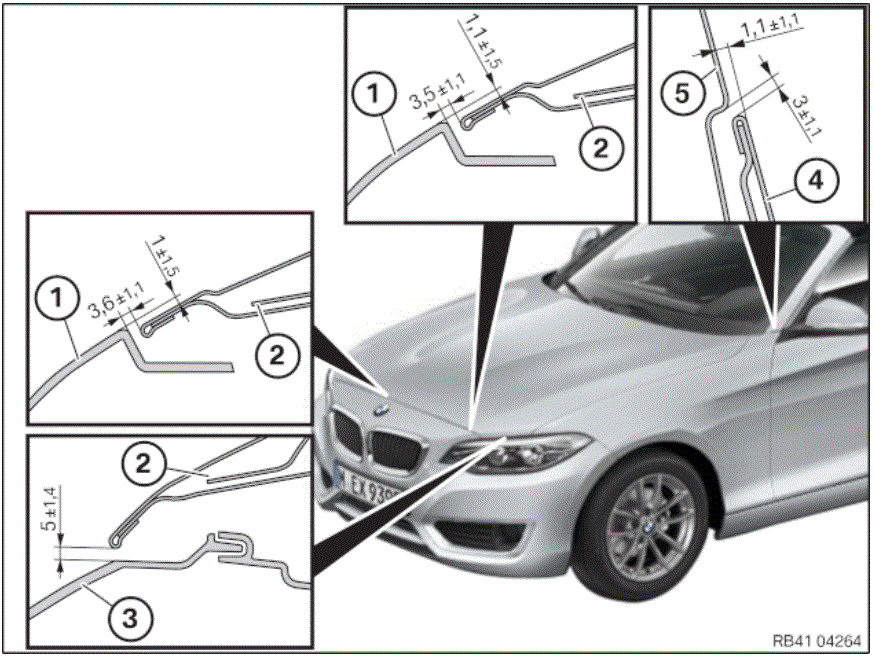

Fig 1: Front Bumper, Headlamp, Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
1. Bumper panel, front
2. Engine compartment lid
3. Headlight
4. Side wall, front
5. A-pillar

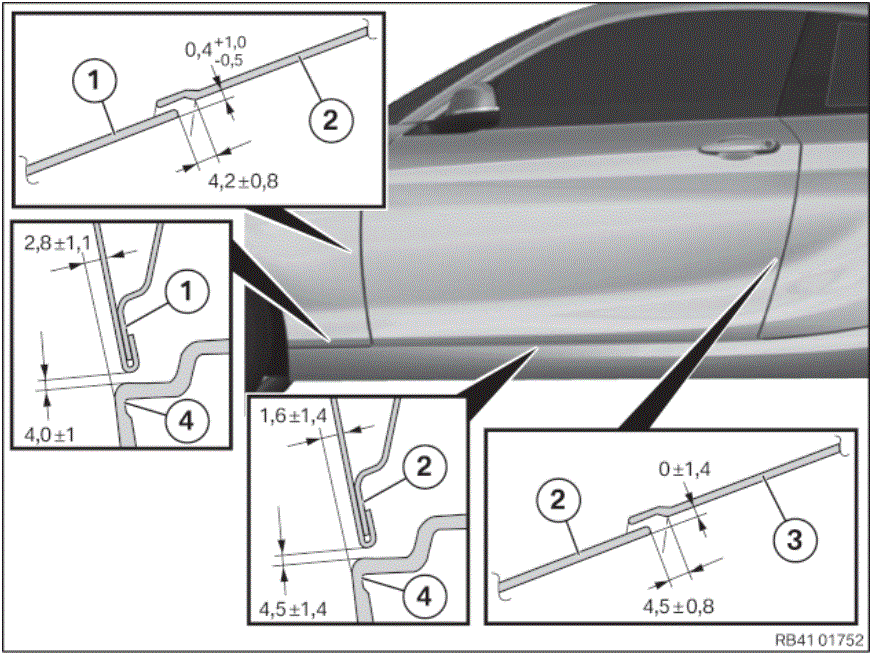

Fig 2: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
1. Side wall, front
2. Front door:
3. Rear door
4. Trim panel for entrance

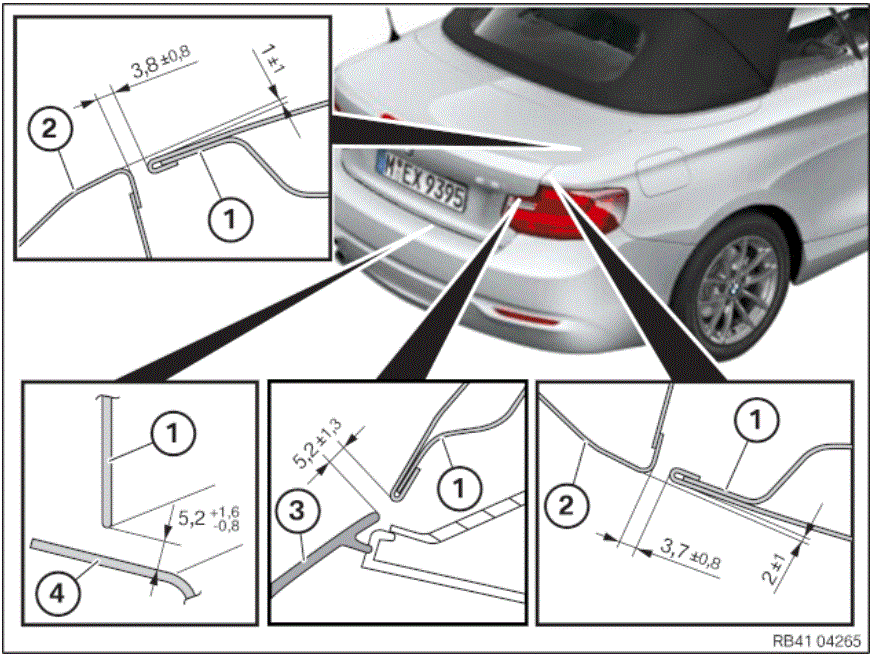

Fig 3: Tailgate, Quarter Panel And Tail Lamps And Rear Bumper Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
1. Tailgate
2. Rear side wall
3. Rear lamps
4. bumper trim, rear

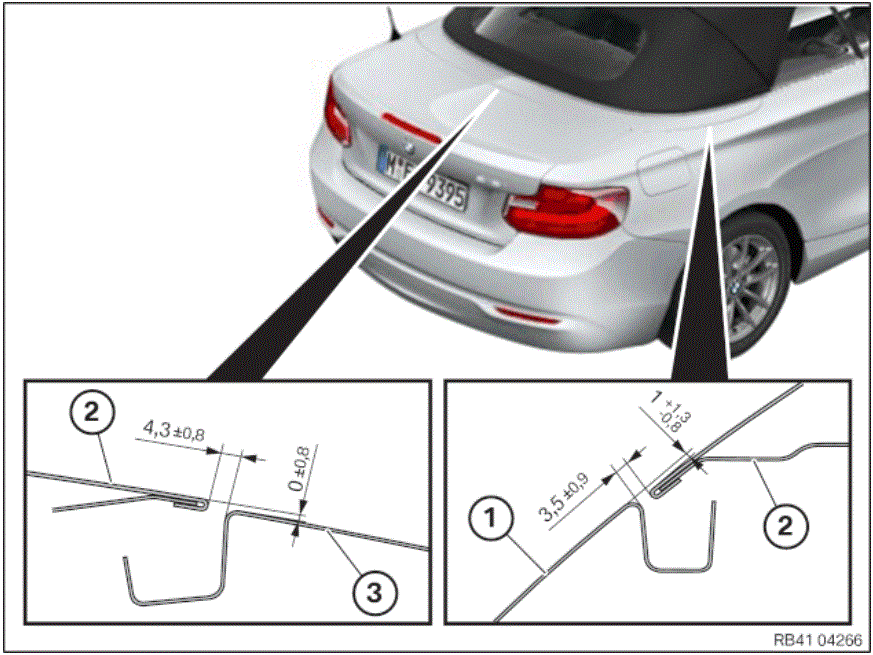

Fig 4: Tailgate, Quarter Panel And Soft Top Compartment Lid Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
1. Rear side wall
2. Soft top compartment lid
3. Tailgate
