Injector Removal Tool (04 22 16)

Publication date: 2016-07-01
Reference number: 04 22 16

INJECTOR REMOVAL TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 22 16, Date of Issue: July 2016

BMW:

I12 (i8); F22 (230i xDrive Coupe); F22 (230i Coupe); F22 (M240i Coupe); F22 (M240i xDrive Coupe); F23 (230i Convertible); F23 (230i xDrive Convertible); F23 (M240i Convertible); F23 (M240i xDrive Convertible; F30 (330i Sedan); F30 (330i xDrive Sedan); F30 (340i); F30 (340i xDrive); F31 (330i xDrive Sport Wagon); F32 (428i xDrive); F32 (430i xDrive Coupe); F32 (430i Coupe); F32 (440i Coupe); F32 (440i xDrive Coupe); F32 (440i xDrive); F33 (430i Convertible); F33 (430i xDrive Convertible); F33 (440i Convertible); F33 (440i xDrive Convertible); F34 (330i xDrive Gran Turismo); F34 (340i xDrive Gran Turismo); F36 (430i Gran Coupe); F36 (430i xDrive Gran Coupe); F36 (440i xDrive Gran Coupe); F48 (X1 sDrive28i); F48 (X1 xDrive28i); G12 (740Li); G12 (740i xDrive); G30 (530i); G30 (530i xDrive); G30 (540i); G30 (540i xDrive)

GROUP:

Tools and Equipment

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

BMW centers that have already ordered and received the Injector Removal tool (83 30 2 358 417) will not receive a second piece under the Automatic Tool Shipment.

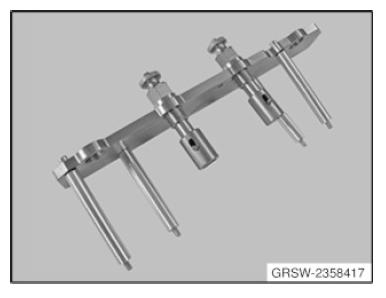

Injector Removal Tool

Order P/N 83 30 2 358 417

This tool is used to remove the fuel injectors without damaging the injectors or the head.

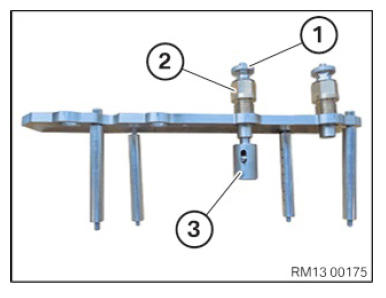

Special tool P/N 83 30 2 358 417 consists of:
1. Threaded sleeves
2. Pull-out thread (left-hand thread)
3. Fixture for the injector

Refer to ISTA Repair Manual section 13 53 318 for complete details.

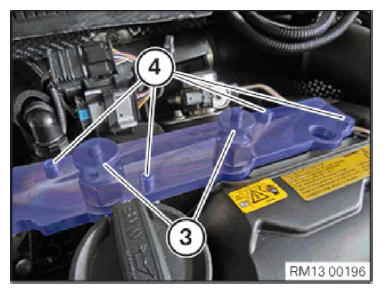

3. Injector Pullers
4. Attaching screws

WARRANTY INFORMATION

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:

Go to TIS.
Select "Tools and Equipment."
Select "Special Tool Parts Warranty."
