51 23... Adjusting/Replacing Bump Stops

Necessary preliminary tasks:

Remove luggage compartment wheel arch panel  . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Following parts must not be damaged:

• (1) Bump stop
• (2) Lock nut (following illustration)

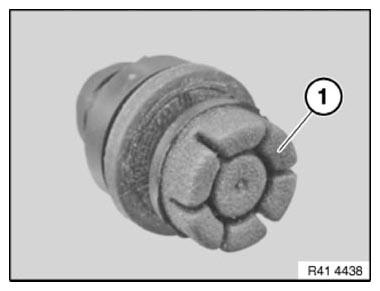

  Fig 1: Identifying Bump Stop

  Courtesy of BMW OF NORTH AMERICA, INC.

General view of rear side:

• Adjust stop pads

  Remove cap (1).

  Adjust stop pad to correct height by turning screw (2) to left or right.

• Remove stop pads

  Release nut (3) and remove stop pads.

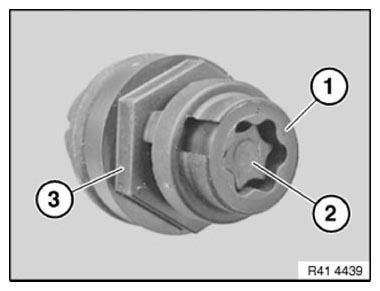

  Fig 2: Identifying Bump Stop, Cap, Screw And Nut

  Courtesy of BMW OF NORTH AMERICA, INC.
