2413036 Measurement aid AM: Notes

NOTE: For checking and adjusting the chain play of the oil pump. Contour-graphic silhouette foil is included in the delivery specification.

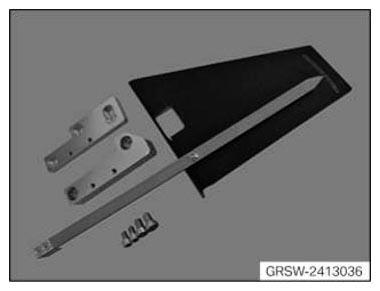

Fig 1: Identifying Measurement Aid (2413036)
