61 13... Unlocking and disconnecting different plug connections

NOTE:

The following service information describes unlocking and disconnecting different types of plug connections.

Differences in the details of the size and shape of the plug connections are possible.

Press lock and open release clip in direction of arrow.
Disconnect plug connection.

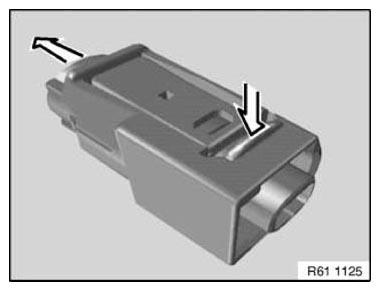

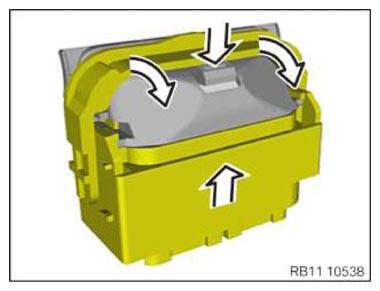

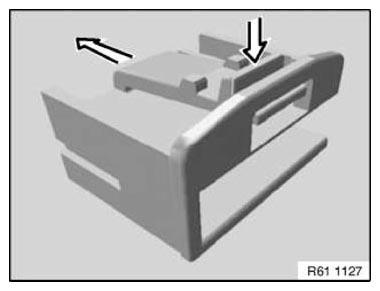

Fig 1: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and open release clip in direction of arrow.
Disconnect plug connection.

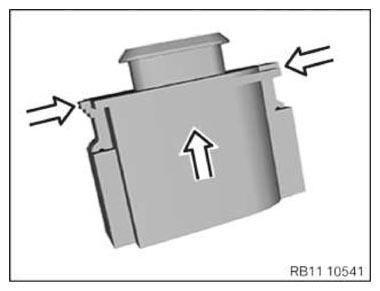

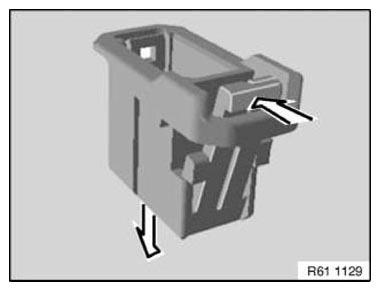

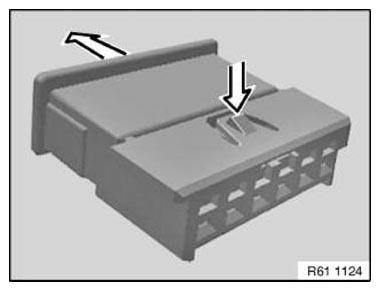

Fig 2: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Open release clip in direction of arrow and disconnect plug connection in direction of arrow.

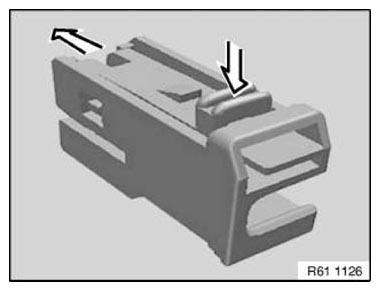

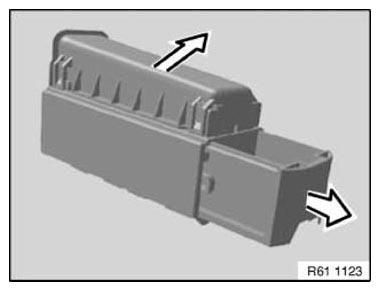

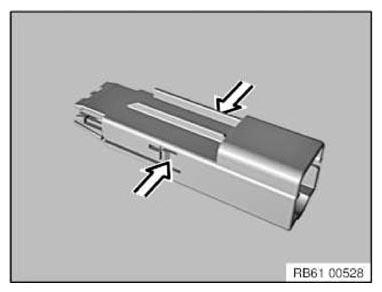

Fig 3: Opening Plug Connection Release Clip
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

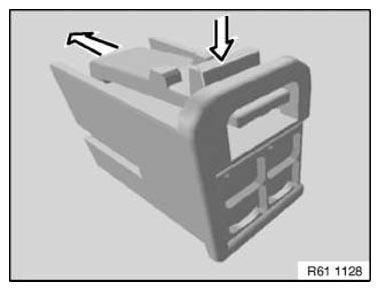

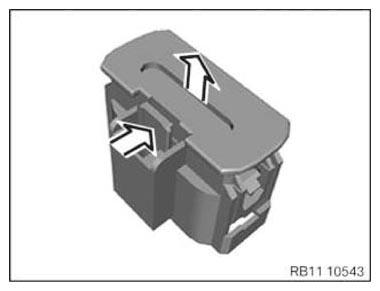

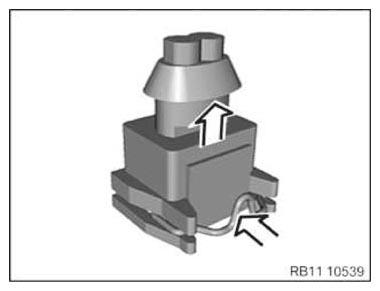

Fig 4: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

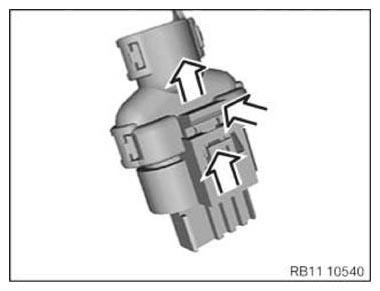

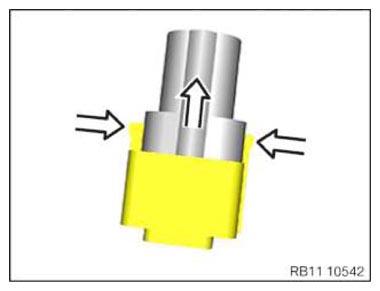

Fig 5: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

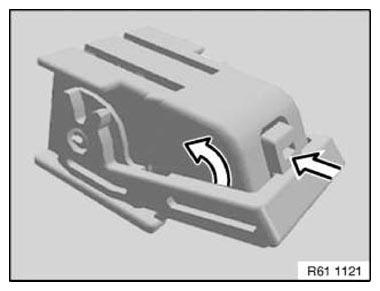

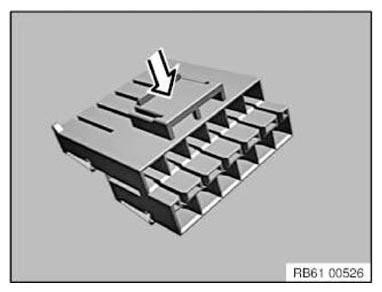

Fig 6: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

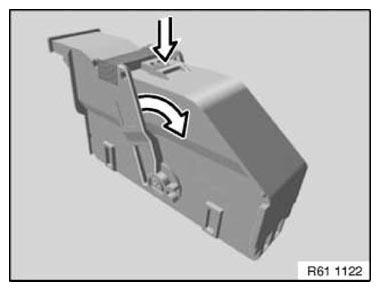

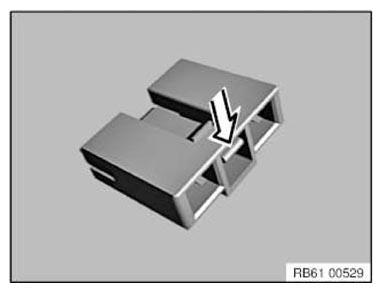

Fig 7: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

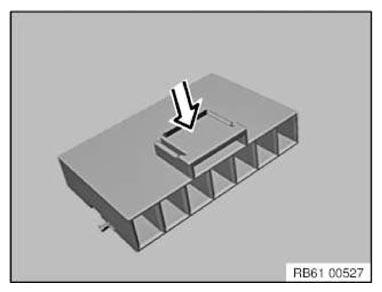

Fig 8: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 10: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 11: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock on both sides and detach plug connection.

Fig 12: Pressing Plug Connection Lock (Both Sides)
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 13: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and open release clip in direction of arrow.
Disconnect plug connection.

Fig 14: Opening Plug Connection Release Clip
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 15: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Pull out lock and press.
Disconnect plug connection.

Fig 16: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 17: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 18: Pressing Plug Connection Lock
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 19: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Plug connection, e.g. on the power distribution box:
Press into the opening (2) using a suitable tool (1).

Pull off plug connection (3) upwards.

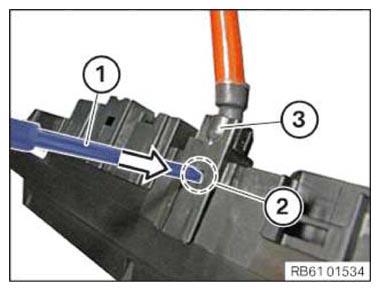

Fig 20: Pressing Into Plug Connection Opening Using Suitable Tool
Courtesy of BMW OF NORTH AMERICA, INC.
Plug connection, e.g. on the power distribution box:
Lift lock (1) with a suitable tool.

Pull off plug connection (2) upwards.

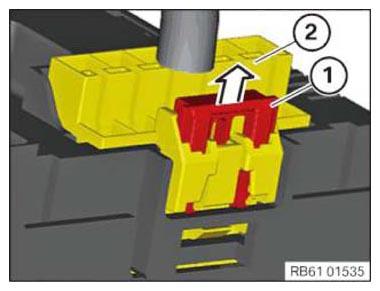

Fig 21: Removing Power Distribution Box Plug Connection Lock
