Frame Reference Body Dimension

Dimensions in mm.

Dimension tolerances:

The checkpoints shown serve to check the body and the set of attachments.

The specified dimensions always refer to the centerpoint of the bore hole/screw.

Underbody View 1

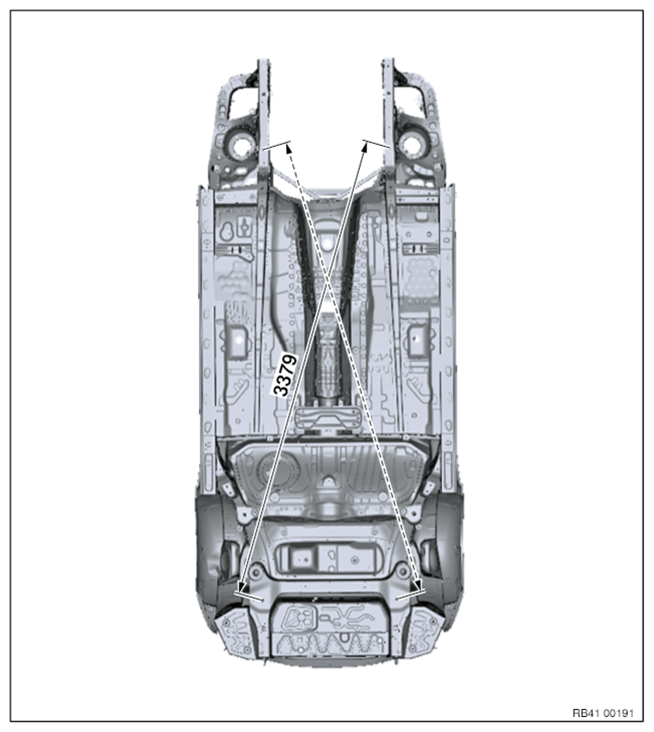

Fig 1: Vehicle Underbody Frame Reference Dimensions And Measurement Points (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Underbody view 2

Fig 2: Vehicle Underbody Frame Reference Dimensions And Measurement Points (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a = 1548 mm between screw-on points of door brakes.
