Fasten Air Conditioning Compressor
Preparing for the installation of the air-conditioning compressor

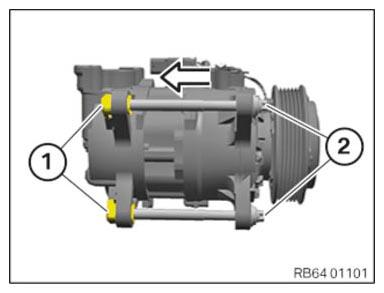

- Screw the screws (2) into the threaded support bushings (1).
- Push back the threaded support bushings (1) with the help of screws (2) slightly in the arrow direction.
- Unscrew the screws (2) out of the threaded support bushings (1).

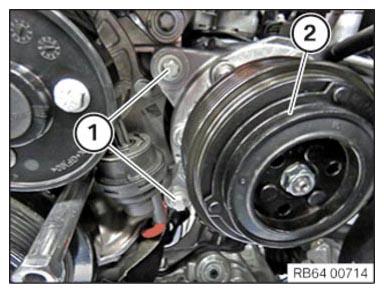

- Correctly position the air conditioning compressor (2).
- Tighten down screws (1).
- If required, connect connector.
