Install The Lower Right Engine Bulkhead

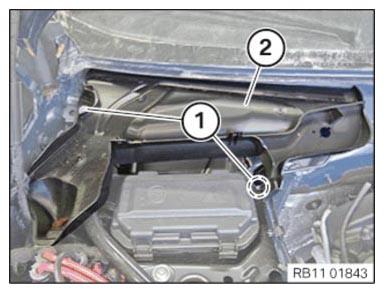

• Position the attachment part (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Engine bulkhead to body
  M8 x 18	Tightening torque	9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

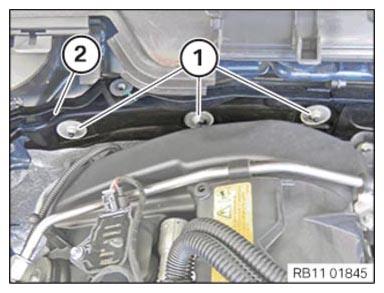

• Position the engine bulkhead (2).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Engine bulkhead to body
  M8 x 18	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

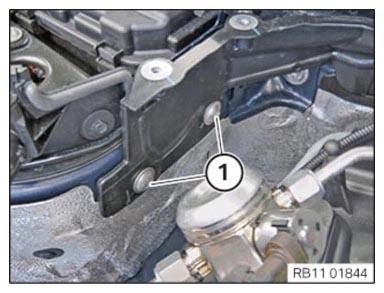

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Engine bulkhead to body
M8 x 18	Tightening torque	19 Nm
