Installing The Heat Shields

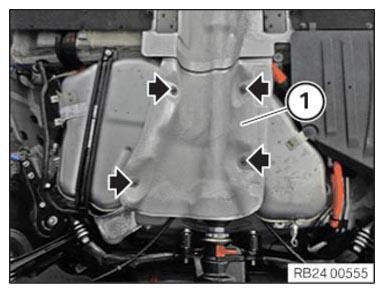

Install heat shield (1).

Tighten the nuts (arrows).

TIGHTENING TORQUE SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G14619116

Courtesy of BMW OF NORTH AMERICA, INC.

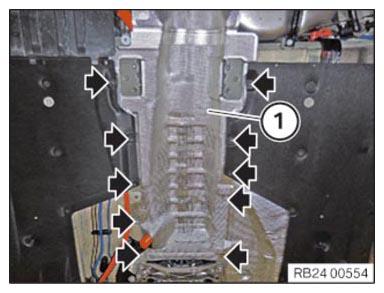

Install heat shield (1).
Tighten the nuts and bolts (arrows).

TIGHTENING TORQUE SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G14619117

Courtesy of BMW OF NORTH AMERICA, INC.
