Installing The Oil Deflector

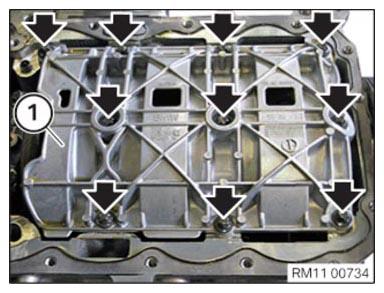

- Install the oil deflector (1).
- Replace the screws (arrows).
Parts:
Screws
- Tighten all the screws (arrows) crosswise.
TIGHTENING TORQUE SPECIFICATION
| Oil deflector to crankcase |
M8 x 35
Replace screws. |
Tightening torque |
15 Nm |
| Angle of rotation |
45° |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
