Installing The Seal
Installing The Seal

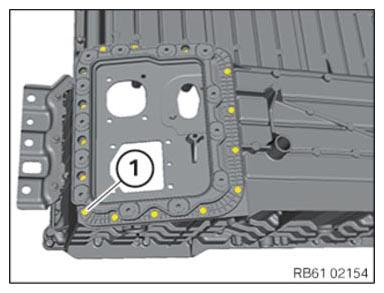

Tighten screws (1) on seal.
TIGHTENING TORQUE SPECIFICATION
Seal to connecting surface
M5x18
Replace screw.
Tightening torque
6.8 Nm
