Remove Both Actuators (Engine Removed)

NOTE: The figure shows the rear of the engine.

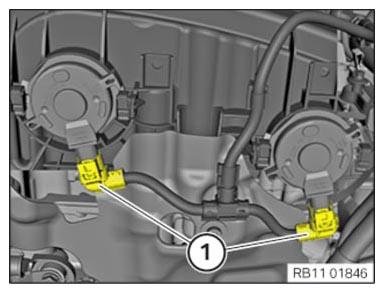

• Unlock and disconnect both connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.

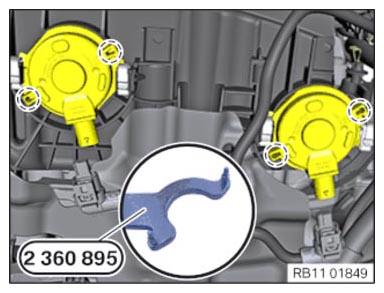

• Position special tool 2 360 895  correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

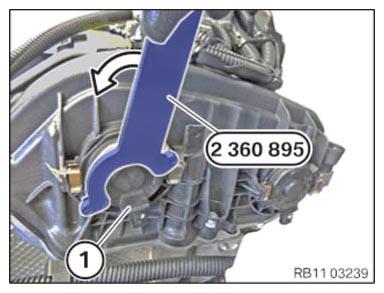

• Twist the actuator (1) of the intake side with the special tool 2 360 895  by about 50° in the direction of the arrow and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

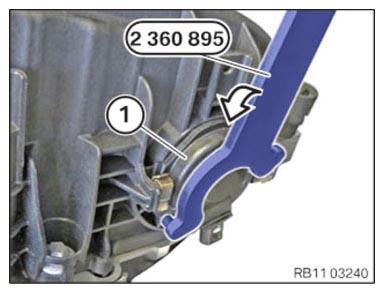

• Twist the actuator (1) of the exhaust side with the special tool 2 360 895  by about 50° in the direction of the arrow and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
