Remove Cross Connection

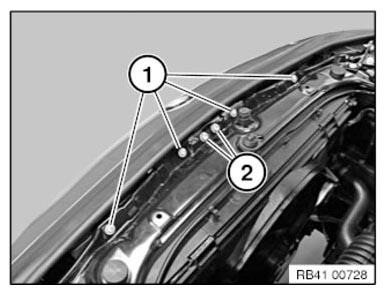

Loosen screws (1).
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

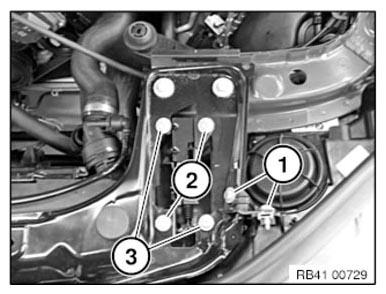

Unscrew the bolts (1) and remove the holder for the headlight.
Loosen screws (2).
Loosen screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

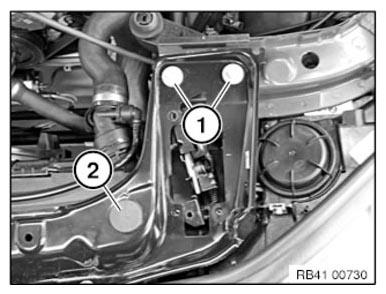

Loosen screws (1).
Unclip the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

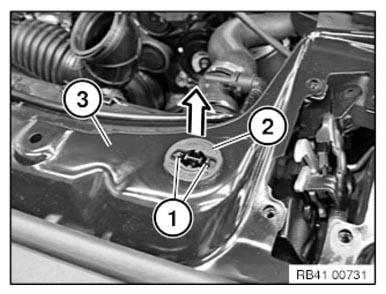

Press the locks (1) together and pull the support sleeve (2) out toward the top.
Remove the cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.
