Remove Outer Cover On Front Seat

• Move backrest to full rearward position.

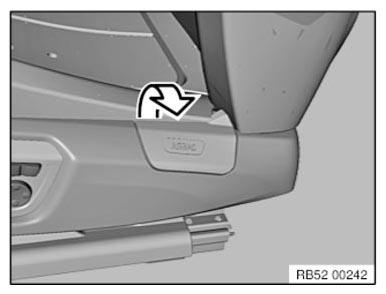

• Grip end fitting cover centrally between seat belt strap and cover and unclip in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

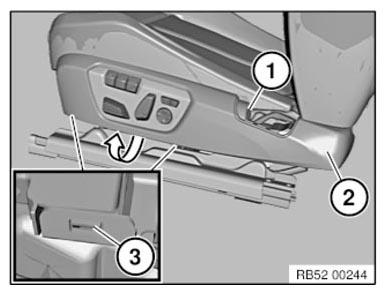

• Loosen screw (1).
• Lever latch mechanism (3) of the cover (2) out of seat mechanism.
• Remove cover (2) in direction of arrow from seat mechanism.
• Unlock associated plug connections of the operating unit and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
