Remove Rear Timing Case Cover

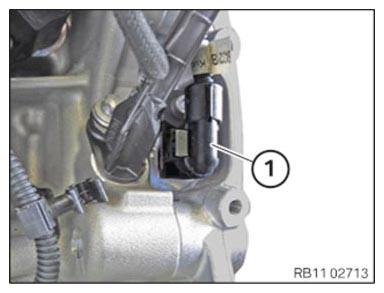

• Unlock the connector (1) and detach it off the crankshaft sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws in the order (11) to (1).
  NOTE: TECHNICAL INFORMATION
  Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
• Carefully loosen and remove the timing case cover.

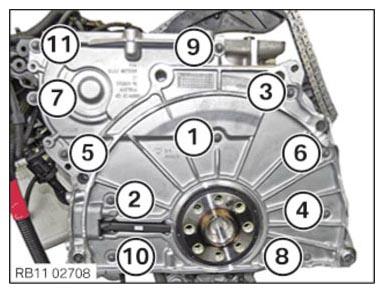

Fig 1: Timing Case Cover Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
