Remove The Heat Shield
Remove The Heat Shield

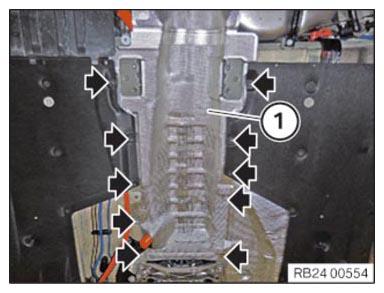

Loosen bolts and nuts (arrows).
Remove the heat shield (1).
Courtesy of BMW OF NORTH AMERICA, INC.

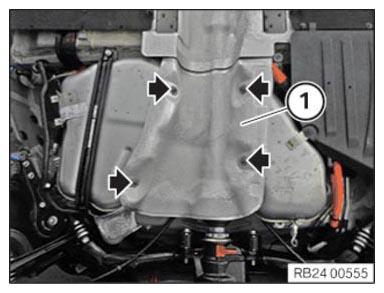

Unscrew the nuts (arrows).
Remove the heat shield (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
