Removing Intake Adjuster

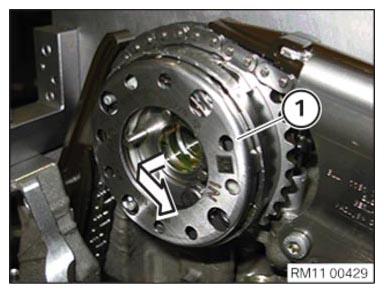

• Remove VANOS central valve (1) of the intake side in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

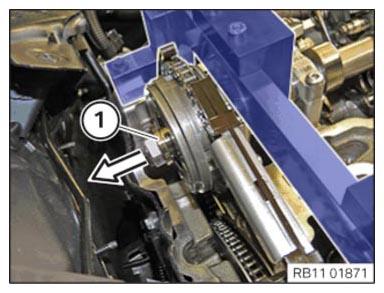

• Remove intake adjuster (1) from the intake camshaft and feed out from the rear of the timing chain.

Courtesy of BMW OF NORTH AMERICA, INC.
