41 00... Body Gap Dimensions

The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear door gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

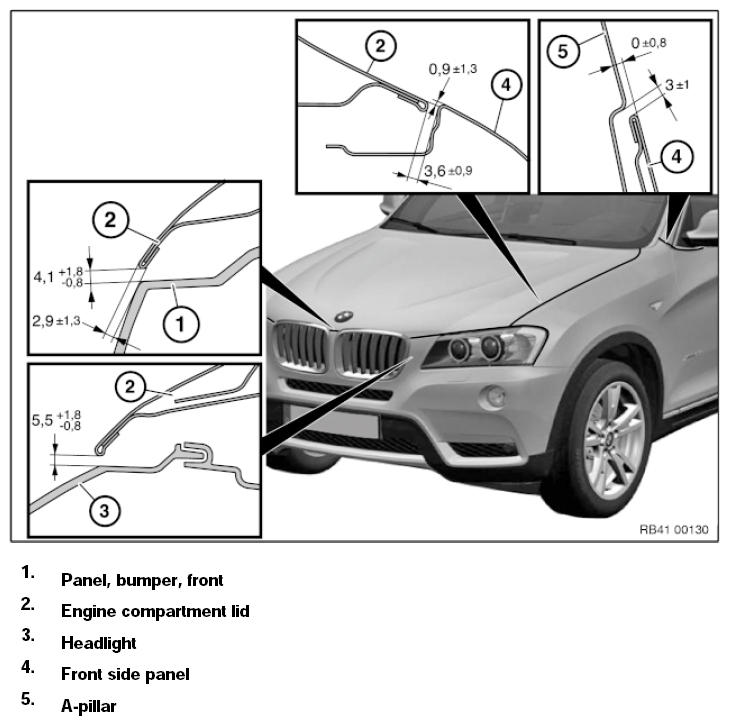

1. Panel, bumper, front

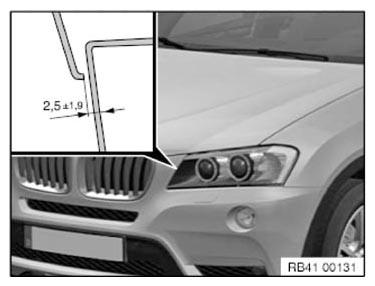

2. Headlight

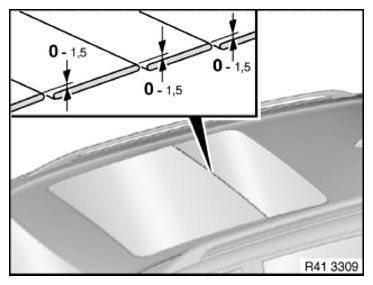

   Fig 3: Front Moonroof Panel And Rear Moonroof Panel Body Gap Dimension And Measurement Points

   Courtesy of BMW OF NORTH AMERICA, INC.

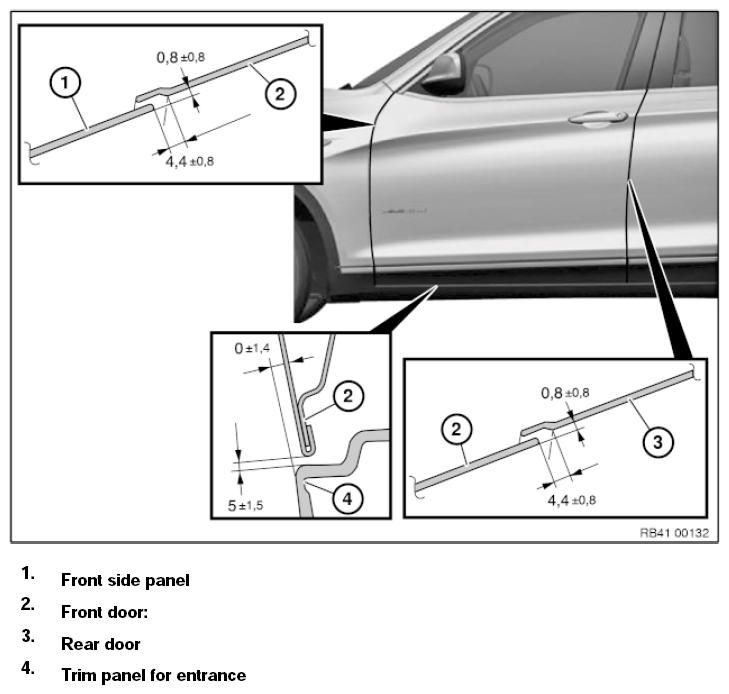

   Fig 4: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimension And Measurement Points

   Courtesy of BMW OF NORTH AMERICA, INC.

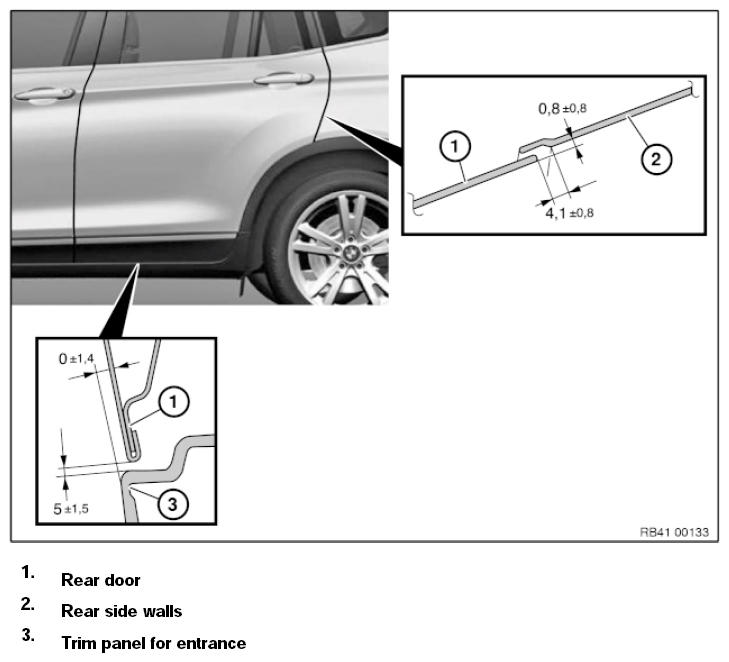

   Fig 5: Quarter Panel, Rear Door And Sill Trim Panel Body Gap Dimension And Measurement Points

   Courtesy of BMW OF NORTH AMERICA, INC.

1. Rear door
2. Rear side walls

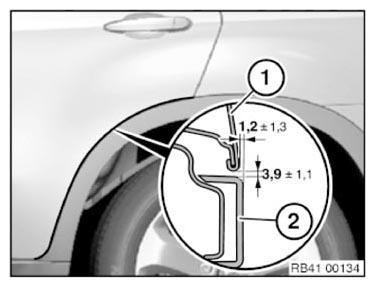

   Fig 6: Rear Door And Rear Wheel Arch Body Gap Dimension And Measurement Points

   Courtesy of BMW OF NORTH AMERICA, INC.

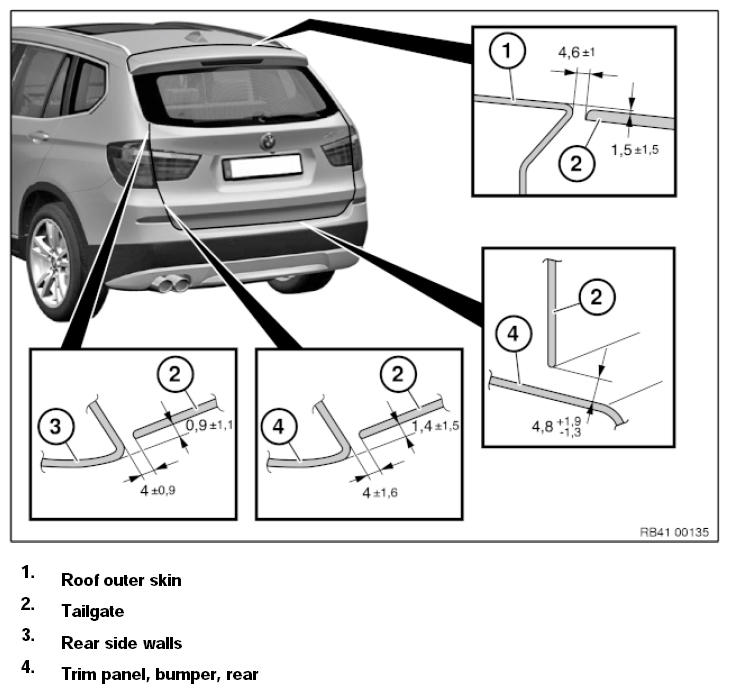

   Fig 7: Roof Panel, Rear Gate, Quarter Panel And Rear Bumper Body Gap Dimension And Measurement Points

   Courtesy of BMW OF NORTH AMERICA, INC.
