Overview Of Engine Compartment
BMW Group Mobile Service

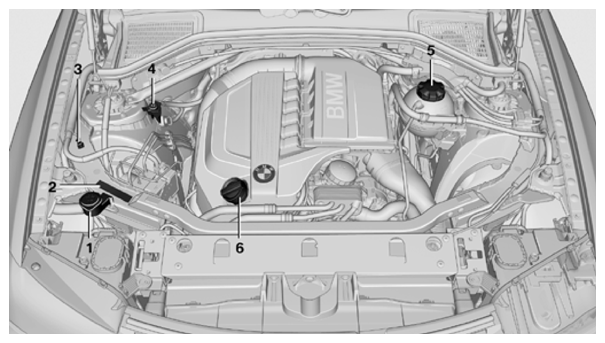

| Switch the engine off Carry out repair work in engine compartment only with the engine switched off. Otherwise, danger of injury is present (for example due to moving parts). Do not reach into the engine compartment Do not reach into spaces or gaps inside the engine compartment. Otherwise, danger of injury is present (for example due to moving or hot parts). The graphic illustrates a vehicle with standard engine. On vehicles with other engines, the oil filler neck or the coolant reservoir may be located in a different place inside the engine compartment.
|
|
| Oil filler neck | |

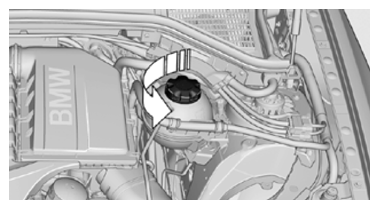

| Coolant reservoir | |

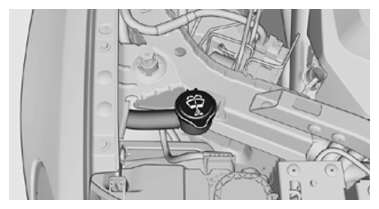

| Washer fluid expansion tank | |

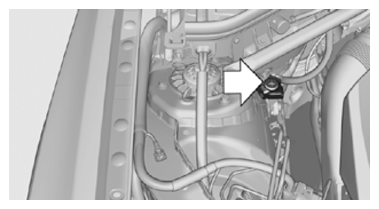

| Starting aid, positive terminal | |

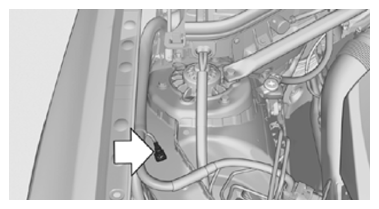

| Starting aid, negative terminal | |
