2411131 Installation drift AM: Notes

NOTE: For installing the radial shaft seal, crankshaft, front housing cover. Contour-graphic silhouette foil is included in the delivery specification.

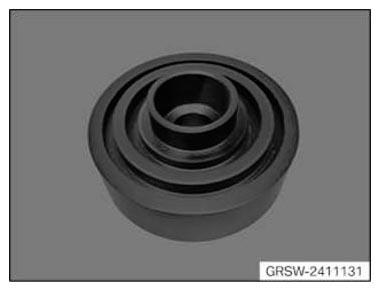

Fig 1: Identifying Installation Drift (2411131)

Courtesy of BMW OF NORTH AMERICA, INC.
