52 26... Replacing microswitch for backrest angle adjustment

Necessary preliminary tasks:

Unfasten plug connection (1) and disconnect.

Release screw (2).

Carefully extract microswitch in direction indicated by arrow.

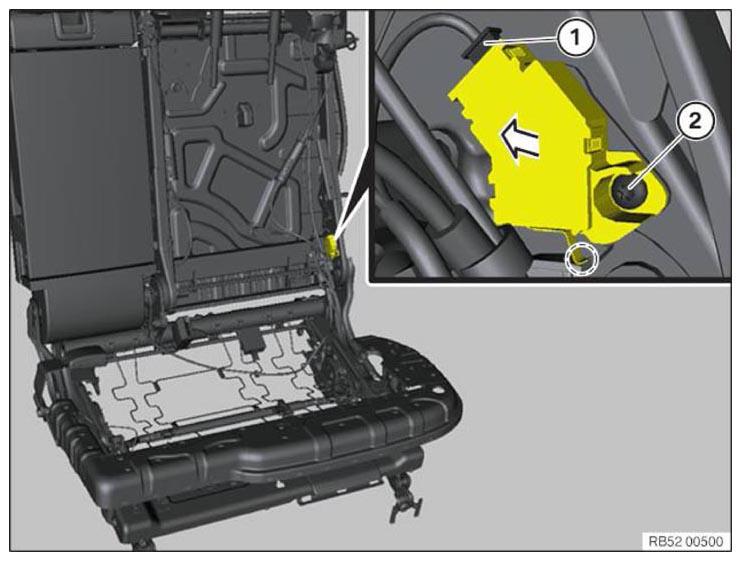

Fig 1: Removing Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure that the contact spring seats correctly in the indicated area.

Ensure correct cable routing.
