Initialization Of The Power Window Regulators

  Sporadic faults or switch-off can be rectified by deletion of an initialization and subsequent re-initialization.
Prerequisites:
  • Vehicle stationary
  • Sufficient battery voltage
  • Terminal "Radio" or terminal "15" switched on
  • All doors closed
  Attention!  The finger protection is not operational during the initialization process. Make sure that there are no persons or foreign materials in the area of the side windows during the initialization.

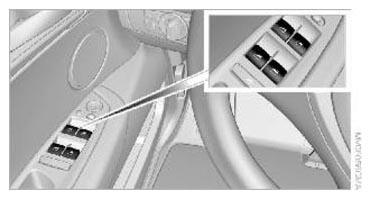

G11116638
Deletion of the initialization by using the button:
  • Fully open the side window on the respective door
  • Fully press the appropriate switch. Press and hold for between 15 seconds and 20 seconds.

Deletion of the initialization was successful if the toll function is no longer possible.
Initialization by using the button:
  • Fully close the side window by pulling the switch. The switch may have to be operated a few times before the side window fully closes.
  • Then fully open the side window. The switch may have to be operated a few times before the side window fully opens.
  • Then close the side window by using the toll function. Do this by pulling the switch and keeping it pulled until the side window is completely closed.

The initialization was successful if the side window can be opened and closed without errors by using the toll function.
