41 11... Removing, Installing/Replacing The Left Side Member Reinforcement

Necessary preliminary tasks:

• Remove the DEFORMATION ELEMENT FOR THE FRONT BUMPER PANEL

Removal

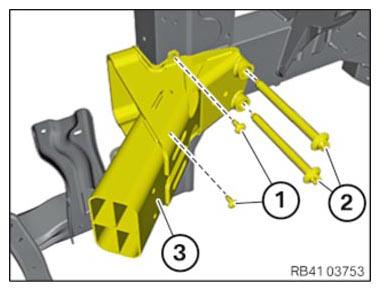

Release screws (1).

Unfasten screws (2).

Remove the side member reinforcement (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Position the side member reinforcement (3).

Tighten down screws (1).

Tightening torque 41 11 8AZ .

Tighten down screws (2).

Tightening torque 41 11 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
