Video diagnosis
The video diagnosis is used to check all the outputs of integrated swells and inputs of integrated sinks.
The test is started in the head unit or in the rear-seat entertainment. The test determines whether the signals from all integrated sources are received at the input.
Swells can be:
- Night vision electronics
- All-round vision camera
- Video module
- DVD changer
- Smartphone video integration
Sinks can be:
- Head unit
- Video switch
- Rear-seat entertainment
As the video switch is located between the swells and sinks, the inputs and outputs on the video switch are checked.
The video diagnosis is carried out automatically.
The following are possible with the video diagnosis:
- Creating test cards
- Displaying fitting variants
- Displaying faulty components
- Fault handling of faulty components

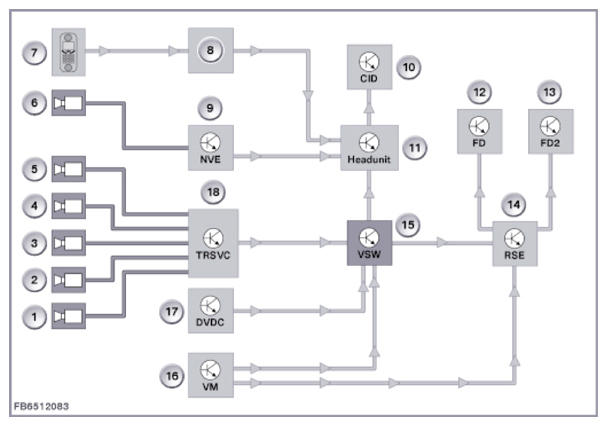

Greatly simplified schematic diagram of the possible video control units:
| Item | Explanation |
|---|---|
| 1 | Reversing camera |
| 2 | Exterior mirror camera, right |
| 3 | Exterior mirror camera, left |
| 4 | Bumper camera, right |
| 5 | Bumper camera, left |
| 6 | Night vision electronic camera |
| 7 | Smartphone |
| 8 | Base plate (BMW, Rolls-Royce) AUX-In (MINI) |
| 9 | Night Vision electronics control unit |
| 10 | Central information display |
| 11 | Car Information Computer or head unit |
| 12 | Rear monitor, left |
| 13 | Monitor in rear, right |
| 14 | Rear-seat entertainment: For Rolls-Royce beginning with model year 2013 one image converter each is intermediately switched between the rear seat entertainment system and the rear monitors |
| 15 | Video switch |
| 16 | Video module |
| 17 | DVD changer |
| 18 | All-round vision camera |

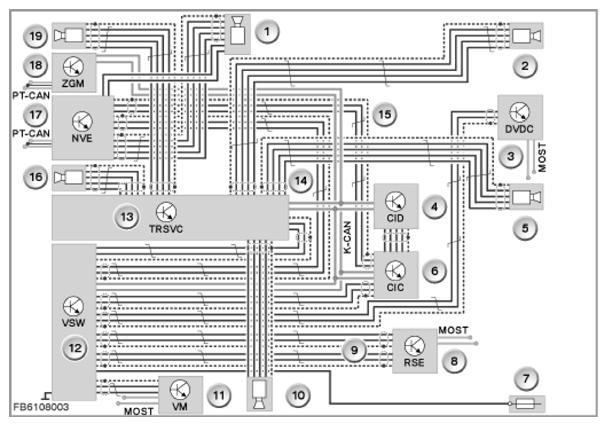

Possible installation of video control units:
| Item | Explanation |
|---|---|
| 1 | Night vision electronic camera |
| 2 | Bumper camera, right |
| 3 | DVD changer |
| 4 | Central information display |
| 5 | Exterior mirror camera, right |
| 6 | Car Information Computer or head unit |
| 7 | Fuse |
| 8 | Rear-seat entertainment |
| 9 | Wiring between video switch and Rear-seat entertainment. Only installed if video module (or DVD changer), video switch and rear seat entertainment system are installed. |
| 10 | Reversing camera |
| 11 | Video module |
| 12 | Video switch |
| 13 | All-round vision camera |
| 14 | Wiring between Night Vision electronics and video switch. This wiring is not always installed. Normally, the Night Vision electronics are connected directly to the head unit. In the F01, the Night Vision electronics are connected directly to the head unit |
| 15 | Wiring between Night Vision electronics and head unit. In the F01, the Night Vision electronics are connected directly to the head unit |
| 16 | Exterior mirror camera, left |
| 17 | Night Vision electronics control unit |
| 18 | Central gateway module |
| 19 | Bumper camera, left |

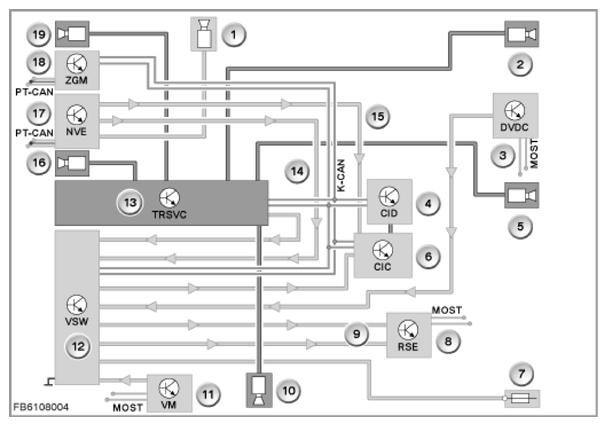

Simplified schematic diagram of the possible video control units:
| Item | Explanation |
|---|---|
| 1 | Night vision electronic camera |
| 2 | Bumper camera, right |
| 3 | DVD changer |
| 4 | Central information display |
| 5 | Exterior mirror camera, right |
| 6 | Car Information Computer or head unit |
| 7 | Fuse |
| 8 | Rear-seat entertainment |
| 9 | Wiring between video switch and Rear-seat entertainment. Only installed if video module (or DVD changer), video switch and rear seat entertainment system are installed. |
| 10 | Reversing camera |
| 11 | Video module |
| 12 | Video switch |
| 13 | All-round vision camera |
| 14 | Wiring between Night Vision electronics and video switch. This wiring is not always installed. Normally, the Night Vision electronics are connected directly to the head unit. In the F01, the Night Vision electronics are connected directly to the head unit |
| 15 | Wiring between Night Vision electronics and head unit. In the F01, the Night Vision electronics are connected directly to the head unit |
| 16 | Exterior mirror camera, left |
| 17 | Night Vision electronics control unit |
| 18 | Central gateway module |
| 19 | Bumper camera, left |
