Remove left and right hands-free microphone
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the left hands-free microphone

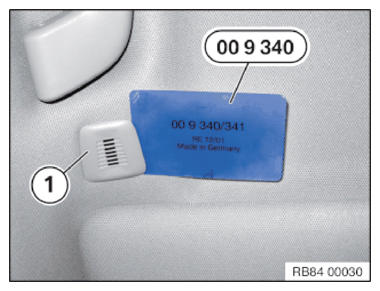

- Use the special tool 0 493 687 (00 9 340) to lever out the hands-free microphone (1).
- Pull the hands-free microphone (1) out of the headlining.
- Unlock associated plug connection and disconnect.
