V8 Engine

Engine Configuation Firing Order Cylinder Identification
S65-ENG V8 1-5-4-8-7-2-6-3

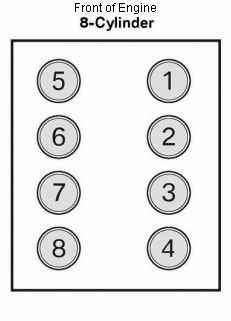

G00487233
All other V8 1-5-4-8-6-3-7-2
G00487233
