V12 Engine

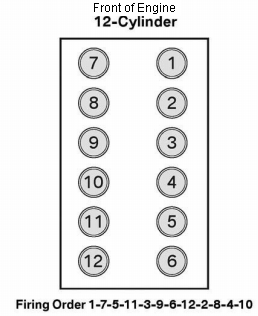

Engine Configuation Firing Order Cylinder Identification
V12 1-7-5-11-3-9-6-12-2-8-4-10
G00487235
