Install engine

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

Guide in and install the engine with the workshop crane (2) 2 220 718 .
Lower engine with the workshop crane (2) 2 220 718 .
Feed out special tool 0 490 567 (11 0 020) at the workshop crane (2) 2 220 718 .
Feed out special tool 0 490 567 (11 0 020) at the engine mounting bracket (1) .
Feed out special tool 0 490 567 (11 0 020) at the special tool 2 459 012 .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) of the right engine mount from the top with a standard tool.

TIGHTENING TORQUE SPECIFICATION

Engine mount to engine support bracket
M12	tightening torque	100 Nm

G14215689

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) of the left engine mount from the bottom with a standard tool.

TIGHTENING TORQUE SPECIFICATION

Engine mount to engine support bracket
M12	tightening torque	100 Nm

G14656587

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install transmission oil lines (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Holder for transmission oil line
Screw	Tightening torque	4 Nm

G14191088

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and position the manifold bracket (2) .
Hand-tighten the bolts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Intake plenum to support
M6X25	Tightening torque	8 Nm

G14191085

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) at the manifold brackets (2) .

TIGHTENING TORQUE SPECIFICATION

Manifold bracket to crankcase
M6x16	tightening torque	8 Nm

G14191086

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and position the positive battery cable (3) .
Insert and position the positive battery cable (2) .

Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATION

Positive battery cable
Positive pole screw	tightening torque	15 Nm

G14191074

Courtesy of BMW OF NORTH AMERICA, INC.

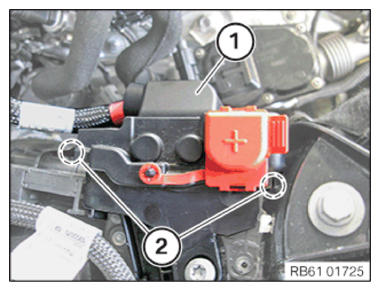

Feed in the cover (2) in a downwards direction.
Engage the cover (2) in the detents (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect tank vent line (4) and lock.
Make sure that the tank vent line (4) engages audibly.
Connect and lock fuel delivery line (3) .
Ensure that the locking mechanism (2) engages audibly.
Feed in and install the clamp (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the vacuum line (1) and lock.
Ensure that the vacuum line (1) audibly engages.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant line (1) .
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

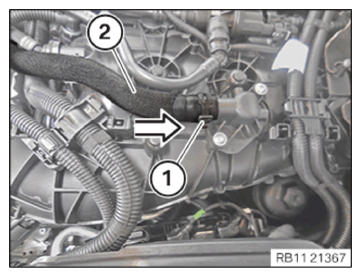

Feed in coolant hose (2) in direction of arrow and install.
Fasten the clamping collar (1) with the special tool 0 495 794 (17 2 050) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and position coolant hose (2) .
Lock clamp (1) .
Make sure that the clamp (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the coolant lines (1) to (3) and lock them.
Make sure that you can hear the coolant lines (1) engage up to (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant lines (1) and (2) .
Make sure that you can hear coolant lines (1) and (2) engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (2) .
Ensure that the locking mechanism (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant line (1) .
Make sure that the cooling line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock the coolant line (1) to the electric coolant pump (2) .
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant line (1) .
Make sure that the cooling line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the air conditioning compressor (3) .

Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATION

Air conditioning compressor in component carrier
M10	Tightening torque	38 Nm

G14191084

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.
Insert and install the holder (2) .

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Holder for transmission oil lines on component carrier
M6X16	Tightening torque	12 Nm

G14191083

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to REMOVING SPECIAL TOOL FROM THE CYLINDER HEAD .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALLING ALL IGNITION COILS .
Refer to INSTALLING CONTROL UNIT BRACKET .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
Refer to INSTALLING THE AUTOMATIC TRANSMISSION (GA8HP51Z) .
Refer to INSTALLING THE EXHAUST BRACKET .
Refer to INSTALLING TRANSMISSION CROSS MEMBER .
Refer to SECURING THE HYDRAULIC LINES TO THE TRANSMISSION .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
Refer to INSTALLING THE RETAINING PLATES .
Refer to INSTALLING THE HEAT SHIELD .
Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING CATALYTIC CONVERTER .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALLING LAMBDA OXYGEN SENSOR .
Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to INSTALLING CENTER BULKHEAD LOWER PART .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING ACOUSTIC COVER .
Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
