Install right backrest side section
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install backrest side section
Installing the backrest side section with the side airbag
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

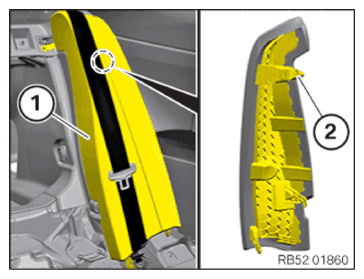

- Insert the backrest side section (1) into the guide at the bottom and position it correctly.
- Clip in the backrest side section (1) on the mounting element (2).
- Replace screws (3).
Parts: Screws
- Tighten the screws (3).TIGHTENING TORQUE SPECIFICATION

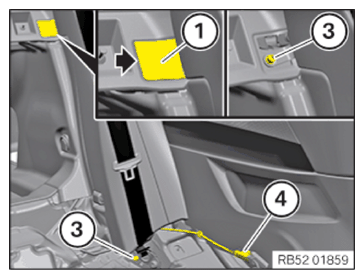

Backrest side section with side airbag M6x20 Replace screw. Tightening torque 8 Nm - Clip in the trim (1) (arrow).
- Connect connectors (4) and lock.
The connector must engage audibly.

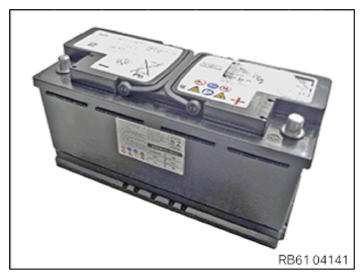

Disconnecting all battery ground leads
- See NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY
.
