Installing fog light support
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

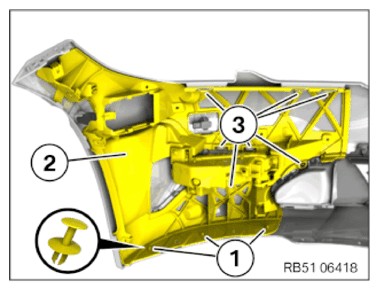

- Fit and position the fog light bracket (2).
- Clip in the fog light bracket (2) in the detents (3).
- Secure expanding rivet (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

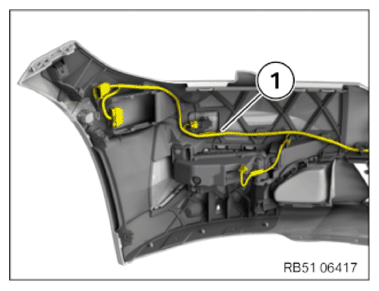

- Position the vehicle wiring harness (1) and fasten with all the clips.
- Connect all connectors and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
