Installing the rear diffuser
- Version A:

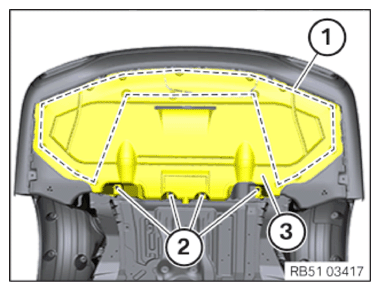

Install the diffuser (3) and tighten the nuts (2).
Tighten the screws along the dotted line (1).
TIGHTENING TORQUE SPECIFICATIONDiffuser/undershield Nuts and screws Tightening torque 3 Nm - Version B:

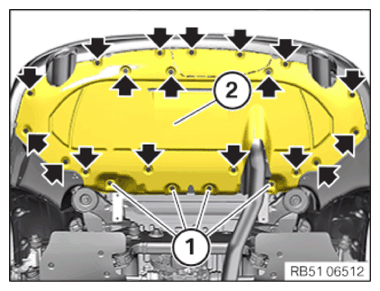

Feed in and install the diffuser (2).
Tighten the nuts (1) and screws (arrows).
TIGHTENING TORQUE SPECIFICATIONDiffuser/undershield Nuts and screws Tightening torque 3 Nm - Version C:

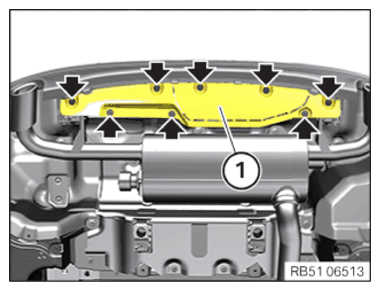

Insert and install the diffuser (1).
Tighten the screws (arrows).
TIGHTENING TORQUE SPECIFICATIONDiffuser/undershield Nuts and screws Tightening torque 3 Nm
