Installing fog light support
Installing fog light support

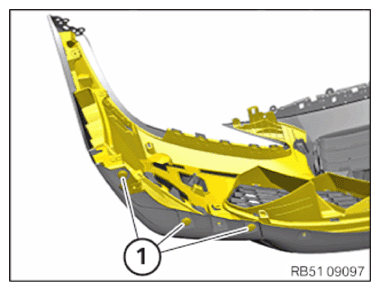

Install fog light bracket (1) and engage it into detents (2).
Courtesy of BMW OF NORTH AMERICA, INC.

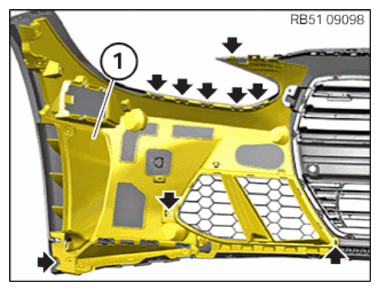

Mount the expanding rivets (1).
Courtesy of BMW OF NORTH AMERICA, INC.

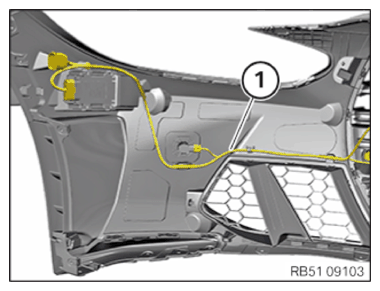

Secure wiring harness (1) into all the clips.
Connect all connectors and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
