Installing the front undershield

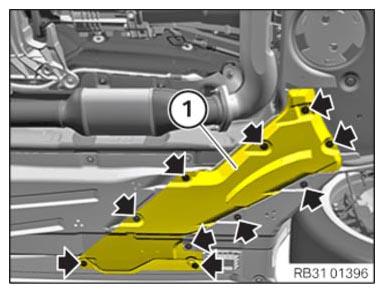

Insert the front undershield (1) and position it.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Undershield
screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

G14988787

Courtesy of BMW OF NORTH AMERICA, INC.
