Installing mount for DME master control module support
Installing mount for DME master control module support

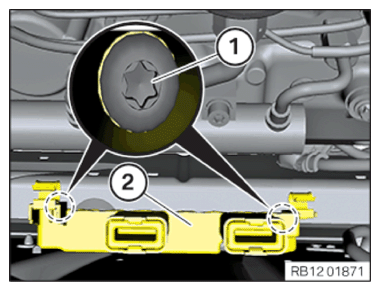

Position mount for DME master control module
(2)
.
Tighten the screws
(1)
.
TIGHTENING TORQUES SPECIFICATION
Mount for DME master control module
M6x13 screw
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

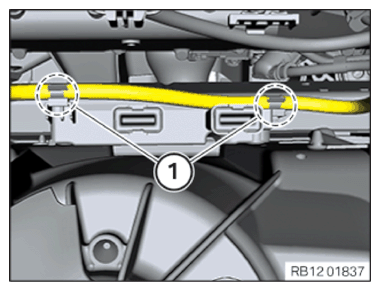

Clip positive battery cable in at holders
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
