Installing fog light support
Installing fog light support
NOTE:
Description is for left component only. Procedure on the right side is identical.

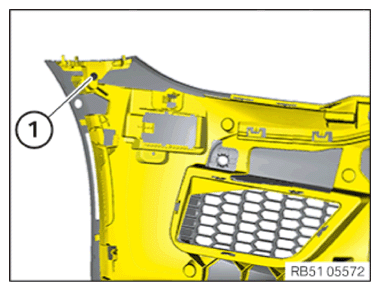

Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Guide to the side on fog light holder
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

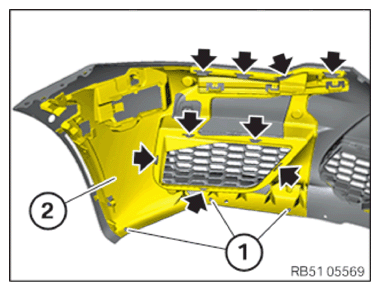

Engage fog light support (2) to the latch mechanism (arrows).
Mount the expanding rivets (1).
Courtesy of BMW OF NORTH AMERICA, INC.
