Installing loading edge trim
Installing loading edge trim

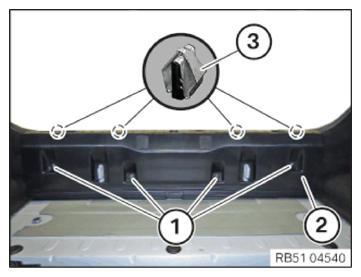

Insert the loading edge trim
(2)
from the top at the clamps
(3)
and clip it in.
Mount the expanding rivets
(1)
.
Position the edge protection of the trunk lid above the loading edge trim
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
