Release tool
0495385

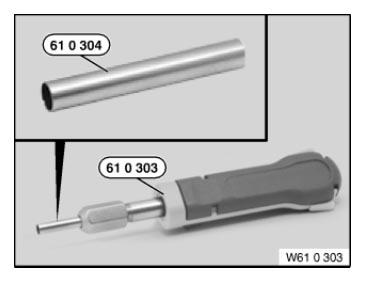

Release tool 610303 Special tool
NOTE:
(Release tool for round systems of D=2.5) Replaces special tool 61 1 132 from September 2005
Storage Location:
Individual
Consisting of:
4 = 0495386
sleeve
NOTE:
(Replacement sleeve D = 2.5) Replaced as of 09/2005 special tool 61 1 156
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495399
Release tool 610317 Special tool
NOTE:
(Release tool for load current contact 8) Replaces special tool 61 1 200 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495398
Release tool 610316 Special tool
NOTE:
(Release tool for flat spring contacts with double retaining tongue "SPT 4.8" "JPT 2.8") Replaces special tool 61 1 136 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495394
Release tool 610312 Serial tool
NOTE:
(Release tool for flat spring contact with a retaining lug (1.6 mm)) Replaces special tool 61 1 134 from September 2005
Storage Location:
Individual
0495396

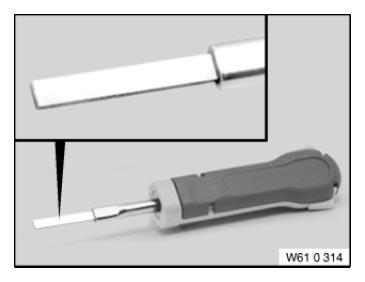

Release tool 610314 Special tool
NOTE:
(Release tool for flat spring contact with a retaining tongue (2.7 mm)) Replaces special tool 61 1 135 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495382
Release tool 610300 Universal tool
NOTE:
(Release tool (complete set)) Replaces the special tool 61 1 150
, from 09/2015 extended by 2 412 134 and 2 412 135
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
Consisting of:
1 = 0495383
3 = 0495385
5 = 0495387
7 = 0495389
9 = 0495391
1 = 0495394
13 = 0495395
14 = 0495396
15 = 0495397
2 = 0495398
17 = 0495399
18 = 0495400
0495401
21 = 0495403
22 = 0495404
23 = 0495405
24 = 0495406
29 = 0495407
5 = 0495578
6 = 0495676
7 = 0495677
1 = 0495678
1 = 0495680
2 = 0496332
3 = 0496333
0495408
Release tool 610400 Universal tool
NOTE:
(Release tools (extension set) for MINI) For unlocking the secondary lock and the new contacts in the N12 and N14 engine. From 02/2008 extended by 61 0 403
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
Consisting of:
- 0495409
- 0495410
- 0496376
0496340
Release tool 611100 Universal tool
NOTE:
(release set) For releasing assorted electrical contacts on all 4-cylinder diesel engines.
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Consisting of:
- 0496341
- 0496342
- 0496343
- 0496344
- 0496345
