Install accelerator pedal module

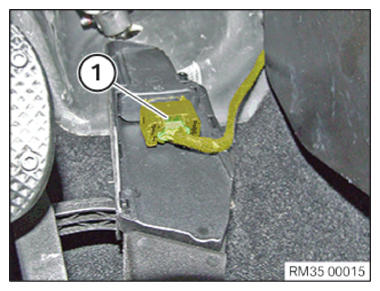

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to wiring harness
During the assembly of the accelerator pedal module, make sure that the cable is not pinched between the holder and the accelerator pedal module.
- Damaged wiring harness must be replaced.
Courtesy of BMW OF NORTH AMERICA, INC.

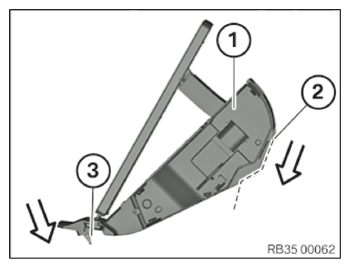

Feed in the accelerator pedal module (1) into the holder (2) first at the top in the arrow direction.
Then align in the holder (3) at the bottom.
There is a positioning pin on the accelerator pedal module at the bottom which allows for the correct alignment.

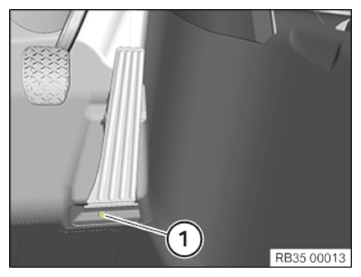

Replace the hexagon socket screw (1) .
Parts: Hexagon socket screw

Fit the hexagon socket screw (1) and tighten.

TIGHTENING TORQUES SPECIFICATION

Accelerator pedal module to body
M6 Replace screw.	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
