Installing front storage compartment trim
Installing front storage compartment trim

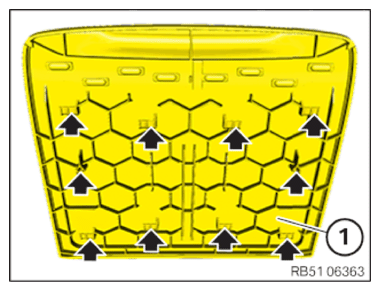

Check all the guides or detents (arrows) for damage, replace the storage compartment trim (1) if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.

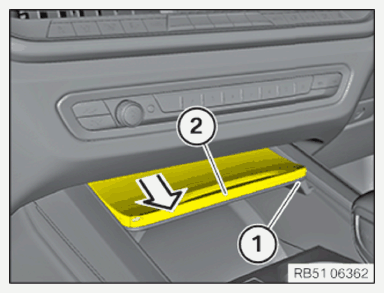

Position the storage compartment trim (2) on the lower section (1) and clip in the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
