Remove accelerator pedal module

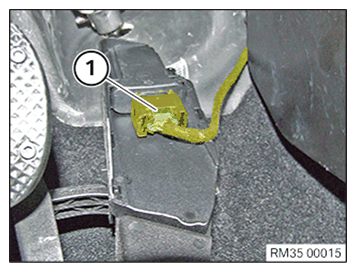

• Lever out cover (1) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the hexagon socket screw (1).
• Feed out accelerator pedal module (2) upwards (see the next step).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lift the accelerator pedal module (1) at the bottom approx. 2 cm to feed out from the holder (2).
• Slide the accelerator pedal module (1) out of the holder (3) in the arrow direction (diagonally upwards).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect plug connection (1) and remove the accelerator pedal module.

Courtesy of BMW OF NORTH AMERICA, INC.
