Remove spring strut
Remove spring strut

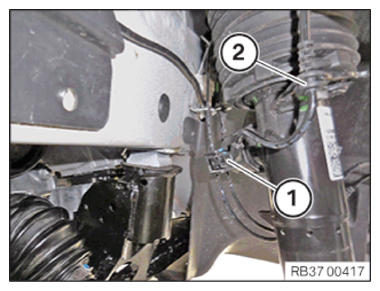

Unlock and disconnect plug connection (1) at the spring strut.
Remove cable from holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

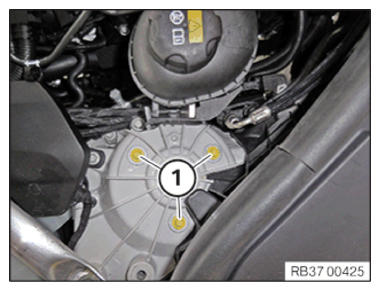

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

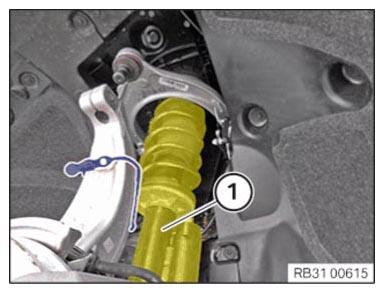

Feed out and remove spring strut (1).
Courtesy of BMW OF NORTH AMERICA, INC.
