Installing all grab handles
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

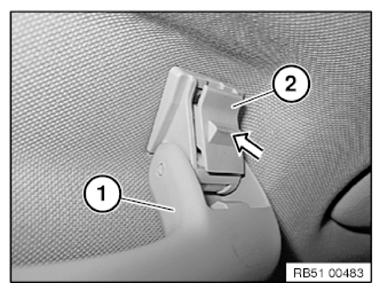

Installing the grab handle
- Press the grab handle (1) on until both locking tabs engage audibly.
- Insert and lock both locking inserts (2) in the direction of the arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
