Installing underbody protection
Installing underbody protection

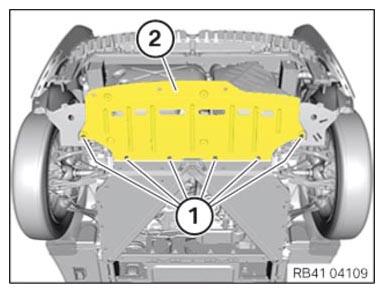

Attach underbody protection (2).
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATIONS
Rear underbody planking to cross-member
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
