Unloader (All Models): Notes

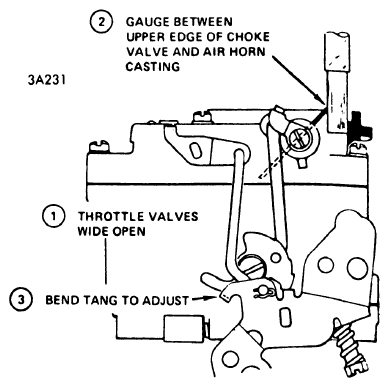

With throttle valves held wide open, and choke valve held toward closed position with a rubber band, bend unloader tang on throttle lever to obtain specified clearance (see specifications ) between upper edge of choke plate and air horn wall. See Fig 1.
