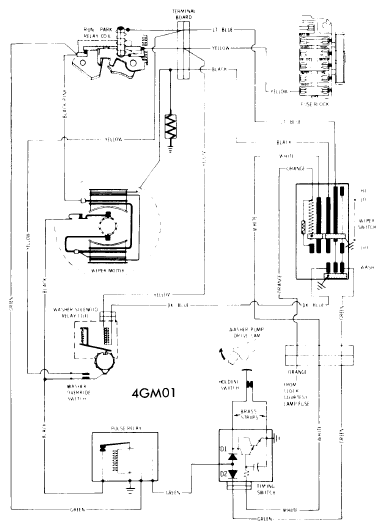

Windshield Wipers - Pulse System: Description
Pulse wiper provides a variable delay action wipe cycle in addition to the standard two or three speed operation. With wiper in "DELAY" mode between minimum and maximum, delay time of wipe cycle ranges 0 to 12 seconds. Pulse wiper motor, similar to round motor, is externally grounded. Gearbox and pulse relays control starting and stopping of wiper motor in conjunction with switch.
