Rocker Arm Assembly

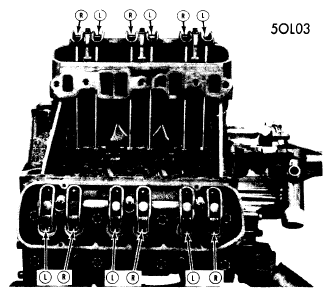

With rocker arm assembly removed, remove nylon rocker arm retainers and remove rocker arms from shaft. Inspect shaft and rocker arms for wear, scoring or damage. Replace components as necessary. If rocker arms are being replaced, note that rocker arms are marked left and right. Reverse disassembly procedure to assemble rocker arms. Rocker arms must be installed in correct order on shafts (see Figure) and new nylon retainers installed.
