Timing Chain: Installation

Install crankshaft sprocket if removed. Position chain on camshaft sprocket and install sprocket and chain, making sure timing marks are aligned on sprockets (see Fig 1). Reverse removal procedure to complete installation.

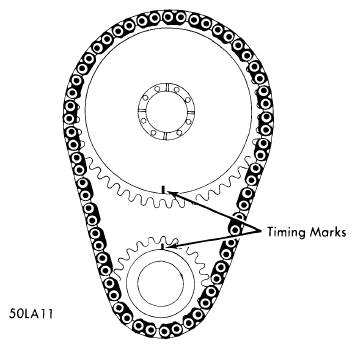

Fig 1: TIMING CHAIN SPROCKET ALIGNMENT

Courtesy of GENERAL MOTORS COMPANY
