Override Relay

Permits engine start by-passing interlock relay in the event of system failure. To activate relay, turn ignition "ON" and press and release relay button in engine compartment.

CAUTION: Press and release button, do not hold or tape button in depressed position.

Engine may be started and restarted as necessary; relay remains activated until ignition key is turned "OFF".

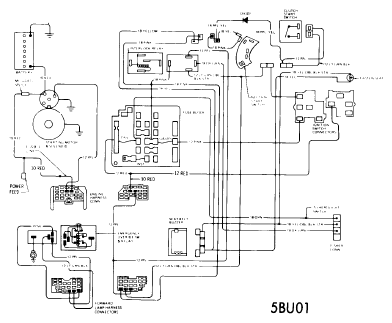

Fig 1: BUICK APOLLO STARTER INTERLOCK WIRING
G09353752Courtesy of GENERAL MOTORS COMPANY
